WHY THIS RESOURCE MATTERS

Recognize visible warning signs and stop at the boundary

A general electrical walk is limited to conditions visible without opening equipment, removing covers, conducting tests, or approaching exposed energized parts. Its purpose is to recognize warning signs, protect people from immediate exposure, and route technical work to a qualified and authorized person.

The surrounding environment matters. A cable may be intact but still unsafe if it crosses a traffic route, sits in water, is pinched by a door, or supplies equipment in a way it was not intended to. Record use, location, access, moisture, damage, and any protective action already taken.

CHECKLIST

What to include

  1. 01Panel access and labels
  2. 02Visible enclosure damage
  3. 03Temporary power arrangements
  4. 04Leads and extension cords
  5. 05Socket and switch condition
  6. 06Wet-area exposure
  7. 07Equipment isolation
  8. 08Warning signs and barriers
  9. 09Photo evidence
  10. 10Immediate escalation and owner

WHAT TO LOOK FOR

Electrical observations that need qualified follow-up

Damaged flexible leads

Cuts, crushed insulation, exposed conductors, improvised joints, stressed plugs, and unsuitable routing should be removed from exposure.

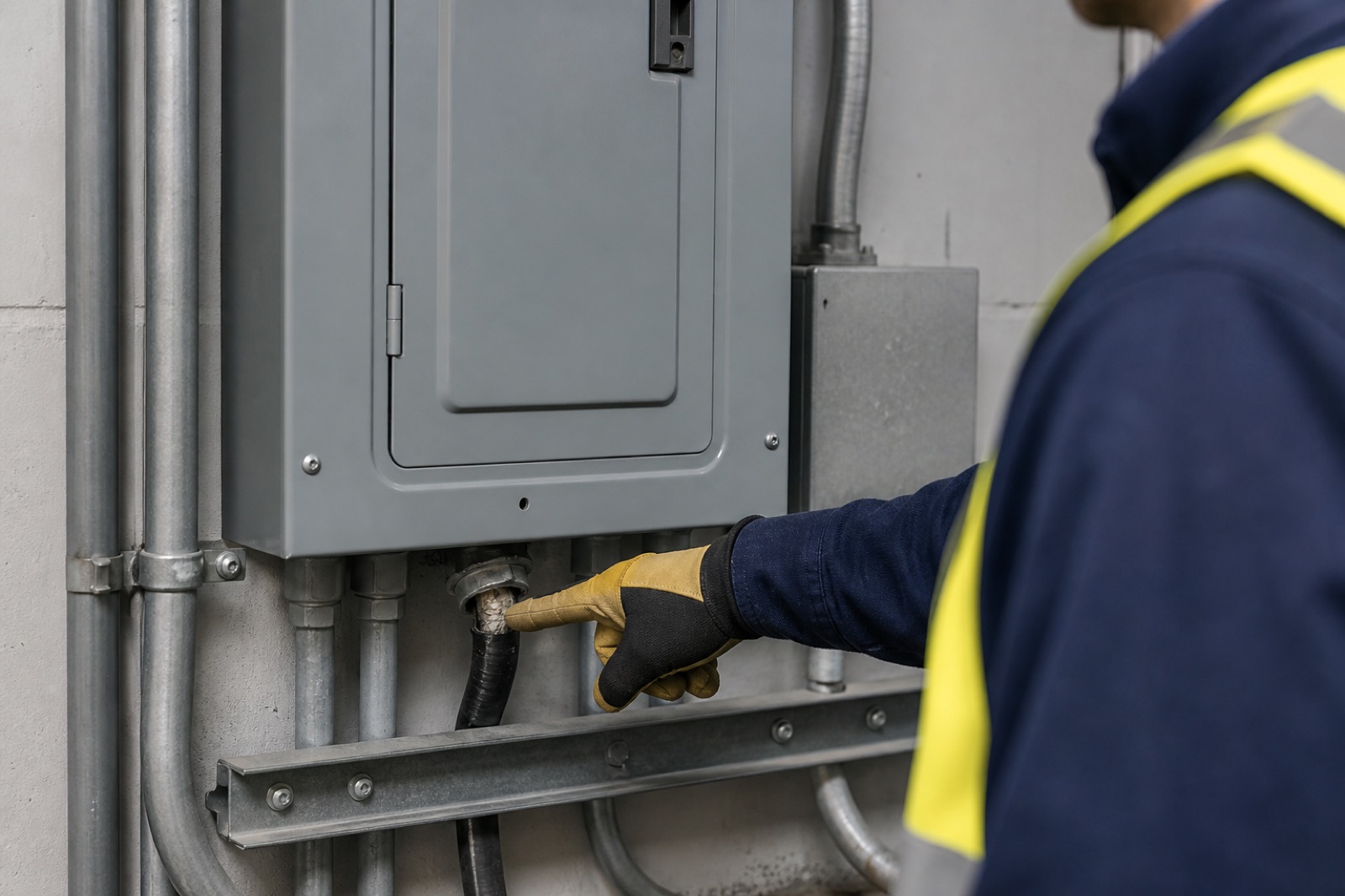

Panel access and enclosure

Blocked working space, missing covers, open doors, corrosion, impact damage, or illegible identification require controlled escalation.

Heat or distress signs

Discoloration, odor, buzzing, repeated tripping, or reported shocks are warning signs, not invitations for unqualified testing.

Moisture and contamination

Leaks, condensation, dust, chemicals, and outdoor exposure can change the risk around outlets, equipment, and temporary supplies.

Temporary arrangements

Adapters, daisy-chained extensions, unsupported cables, and overloaded-looking connections should be reviewed against intended equipment use.

FIELD WORKFLOW

How to use this template

  1. 1

    Confirm authorization and inspection boundaries, then identify active work, temporary supplies, wet areas, public access, and equipment already reported as faulty.

  2. 2

    Observe from a safe position without opening or touching suspect equipment; photograph the surrounding use before taking a closer image when safe.

  3. 3

    For urgent signs, keep people clear and contact the authorized electrical person under the site procedure rather than attempting diagnosis or reset.

  4. 4

    Record the electrician’s outcome, repair reference, test or return-to-service evidence, and any change needed to prevent the same arrangement recurring.

PRIORITY GUIDE

Keep unqualified people away from the hazard

01

Isolate and escalate

Use for exposed parts, shock reports, burning signs, damaged energized equipment, or water affecting an electrical installation.

02

Qualified correction

Use when the defect is contained but equipment, protection, routing, labeling, or enclosure condition needs an electrician.

03

Maintenance control

Use for access, housekeeping, identification, or documentation issues that should be corrected before they contribute to exposure.

FIELD EXAMPLE

Example: a damaged extension lead

A lead with crushed insulation beside a doorway should be recorded with the supplied tool, plug point, traffic route, and visible damage. Do not handle it to improve the photograph or continue using it while waiting for a replacement. Keep the area controlled, notify the responsible supervisor, arrange qualified assessment or removal, and document the safe replacement route so the new lead is not damaged in the same way.

BEFORE YOU START

Adapt it to the job

Names, inspection frequency, acceptance criteria, retention rules, and sign-off responsibilities vary by project and jurisdiction. Remove irrelevant items and add the exact standards, drawings, specifications, and responsible people that apply to your work.

Do not open energized equipment or perform electrical testing unless trained, authorized, and properly equipped.
